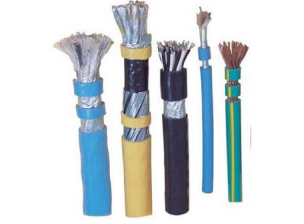

INSTRUMENTATION & FLEXIBLE CABLES
INSTRUMENTATION CABLES
Product Range
Bare / Tinned Copper, PVC, Heat Resistant, LSZH PVC, XLPE insulated Cores, Paired, Triades etc. with Aluminium Myler Tape for Individual and overall shielding upto 50 Pairs Armoured / Unarmoured Cable
Technical Parameters
| Technical Parameters | Details |
|---|---|
| Voltage Grade | 300 / 500 Volts |
| Relevant Standards | BS:5308/EN 50288 |
| Cross Sectional Area | 0.5 Sq.mm to 2.5 Sq.mm as per Spec. / IS |
| Type of Conductor | Copper (Bare / Tinned) |
| Type of Insulation | PVC / HR PVC / PE / XLPE / LSZH |
| Inner Sheath | Extruded PVC / FR / FRLSH / ZERO HALOGEN (LSZH) (ST-1) or (ST-2) |
| Type of Armouring Material |
Galvanised Steel Type : Round / Wire Flat Strip (for Armoured) Tinned Copper (Braided) |
| Type of Screening | Overall, Individual & Overall |
| Outer Sheath | Extruded PVC / FR / FRLSH / ZERO HALOGEN (LSZH) (ST-1) or (ST-2) |
| Drum Lengths | 500 / 1000 Mtrs. |
| Tolerance | +/- 5% |
FLEXIBLE WIRES & CABLES 450 / 600 / 1100 VOLTS
Product Range
Single Core upto 1000 Sq.mm; Multicore upto 300 Sq.mm
Technical Parameters
| Technical Parameters | Details |
|---|---|
| Voltage Grade | 450 / 600 / 1100 Volts |
| Relevant Standards | IS:694/2010, IEC-228 and BS-6004/95 |
| Number of Cores | Single or Multicore |
| Cross Sectional Area | 0.5 Sq.mm to 1000 Sq.mm as per Spec. / IS |
| Type of Conductor | Copper (Bare / Tinned) |
| Type of Insulation | PVC / HR PVC / PE / XLPE / LSZH |
| Sheath (Applicable for Multicore Cables) | Extruded PVC / FR / FRLSH / ZERO HALOGEN (LSZH) (ST-1) or (ST-2) |
| Drum Lengths | 100 / 500 / 1000 Mtrs. |
| Tolerance | +/- 5% |
